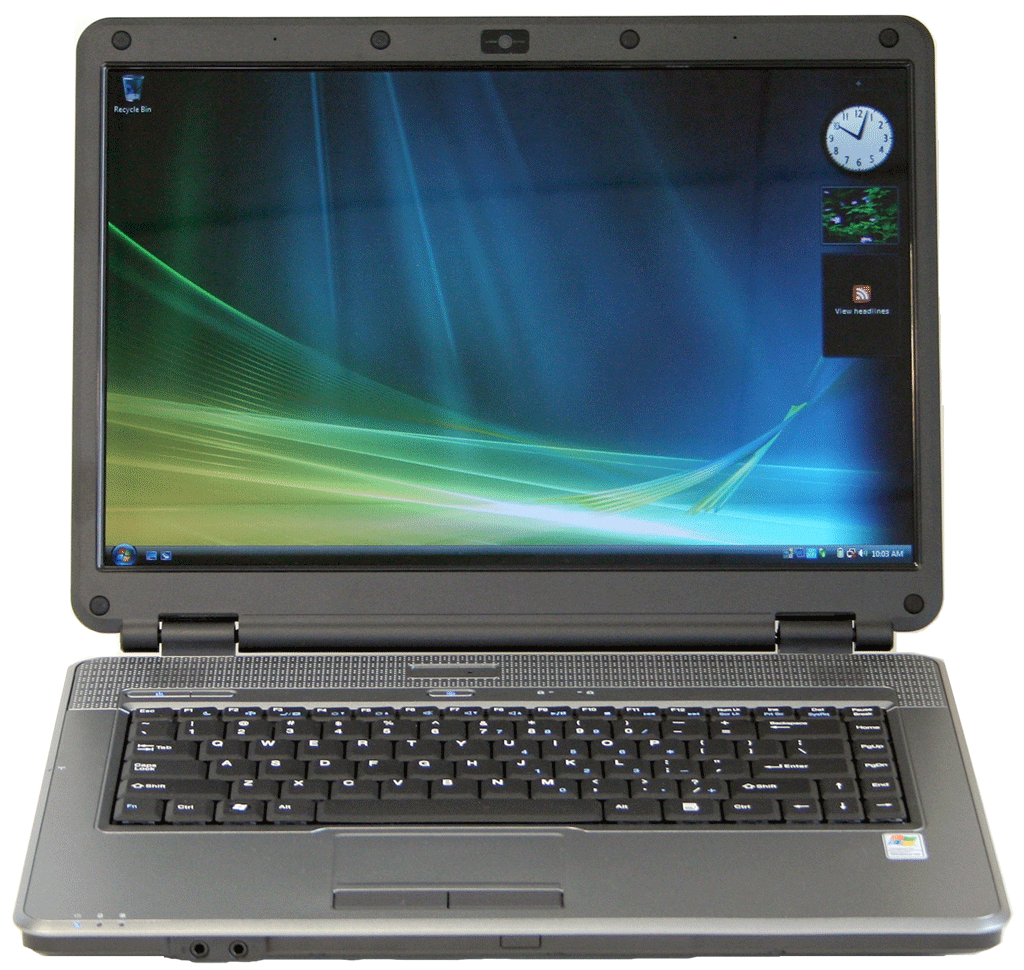

FL92
(15.4" WXGA)
Standard Pricing for 15" Notebook |
Other Views:

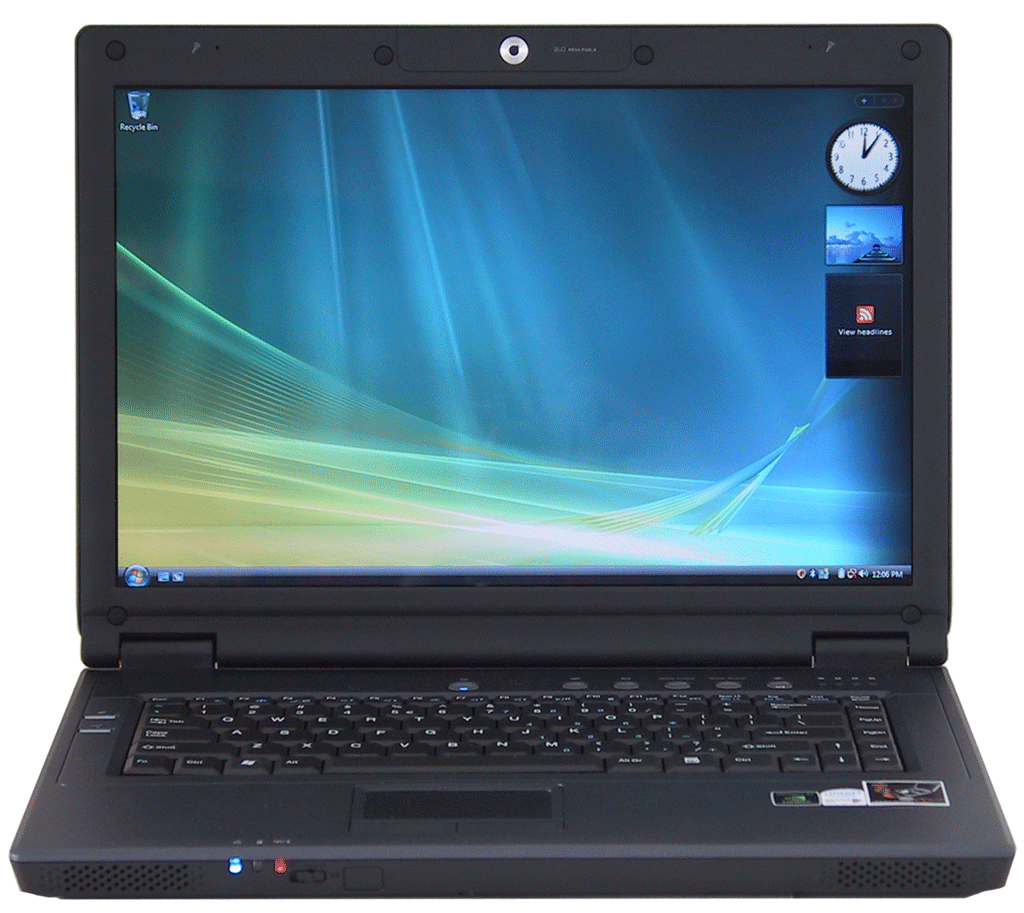

Front,

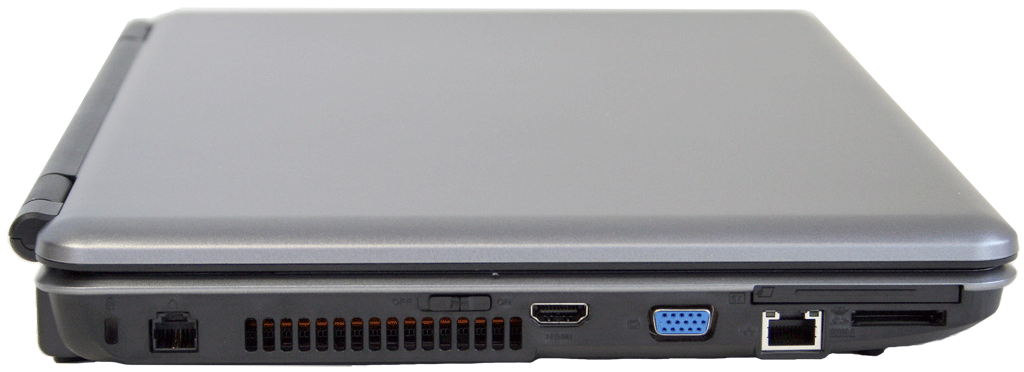

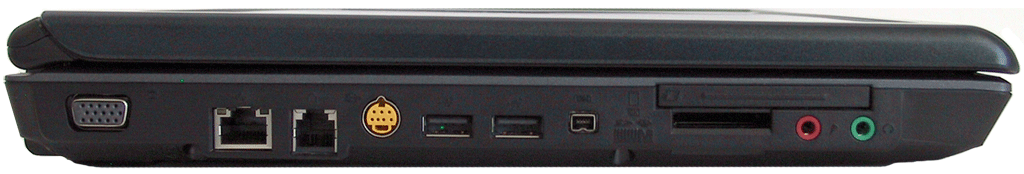

Left,

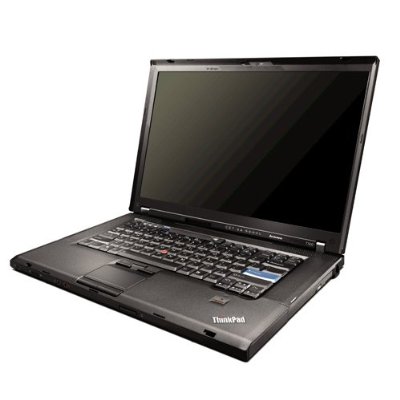

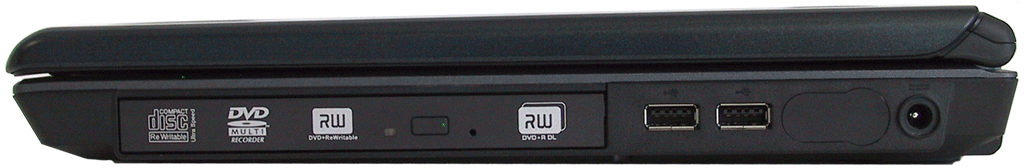

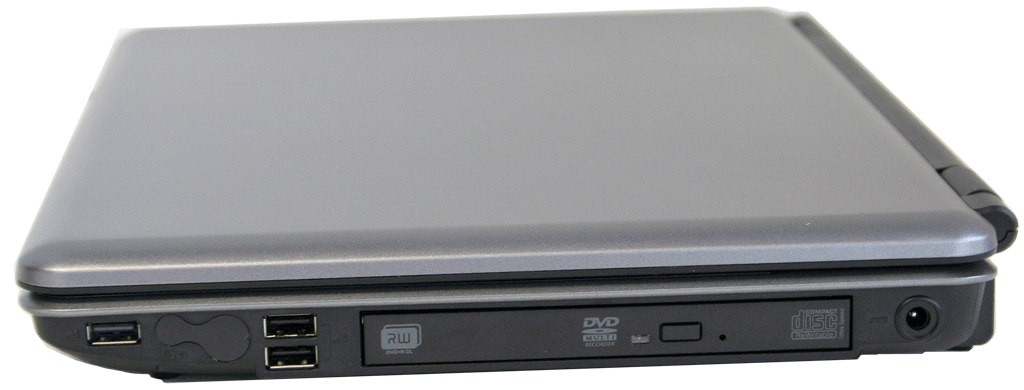

Right,

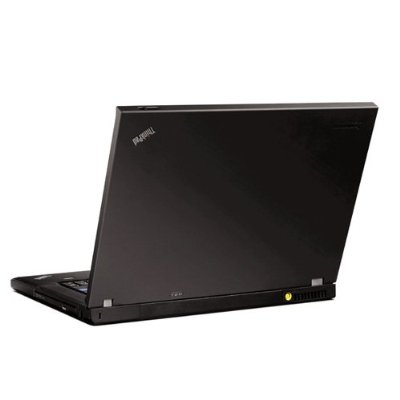

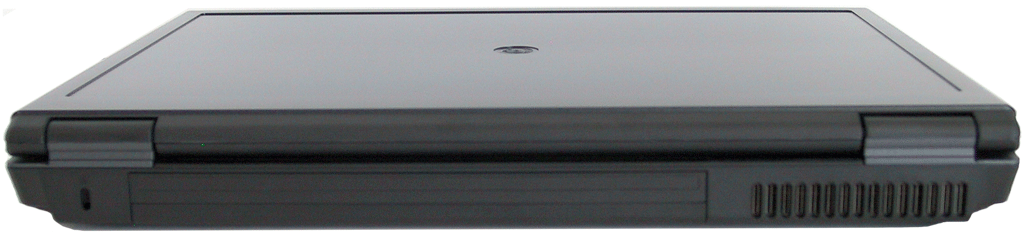

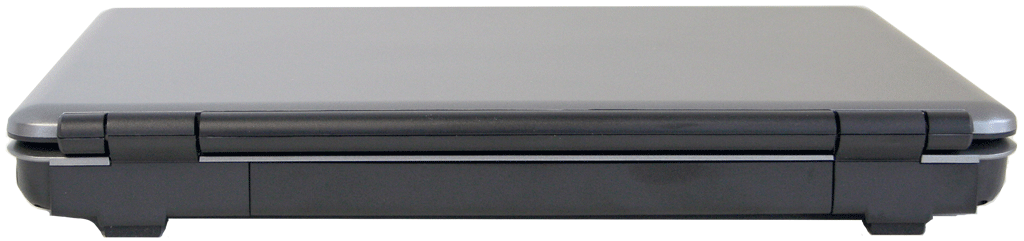

Back,

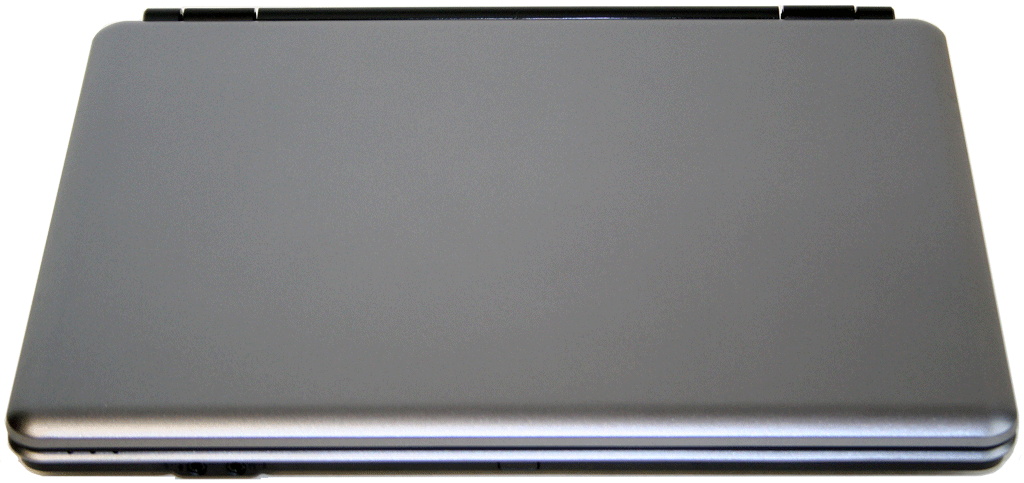

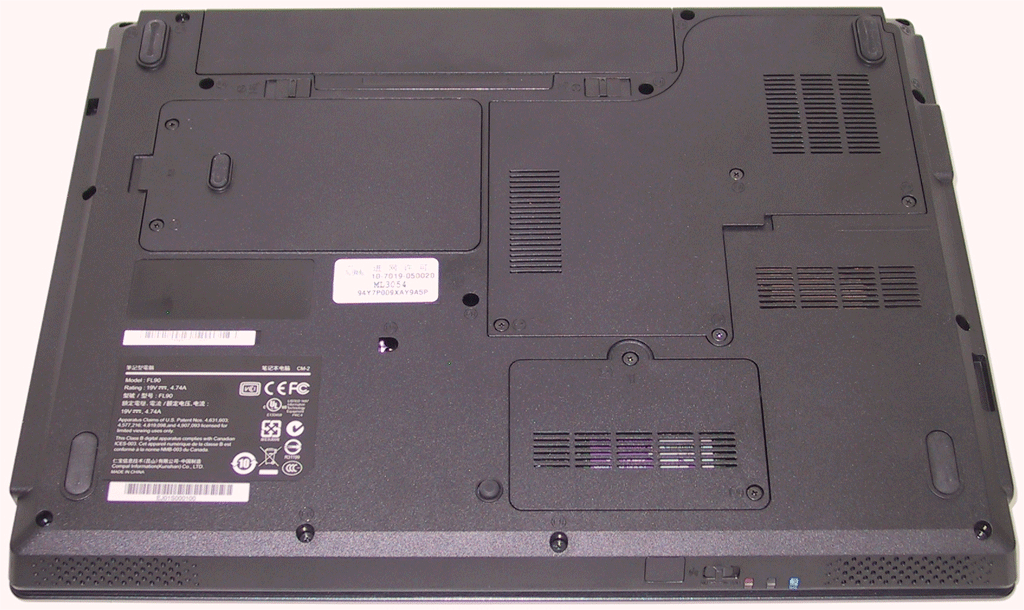

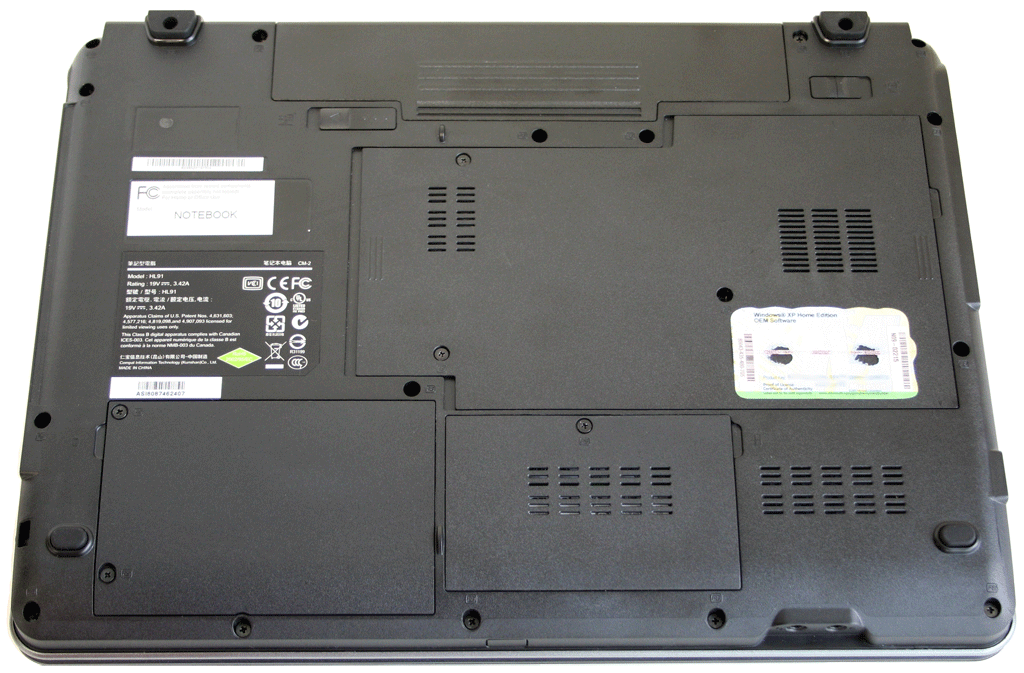

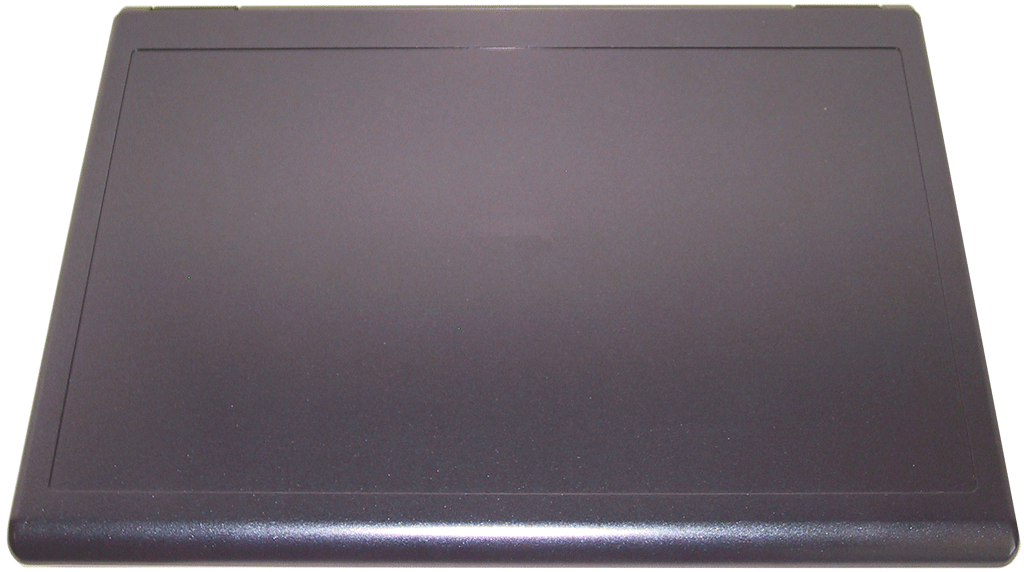

Top, Bottom,

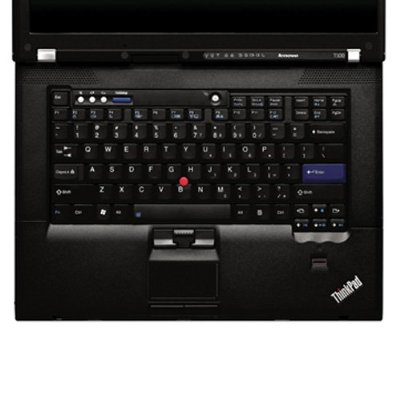

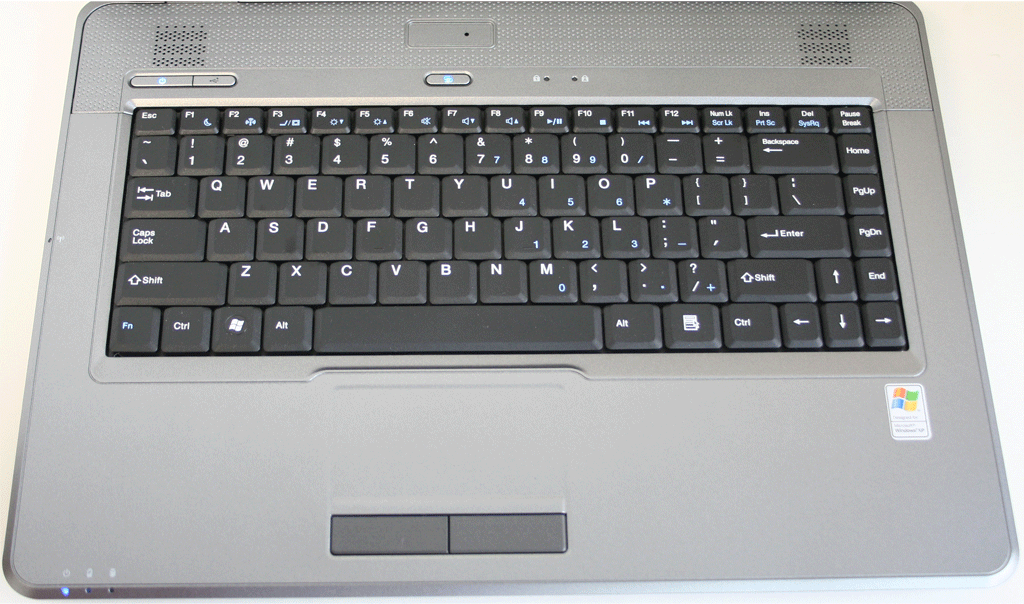

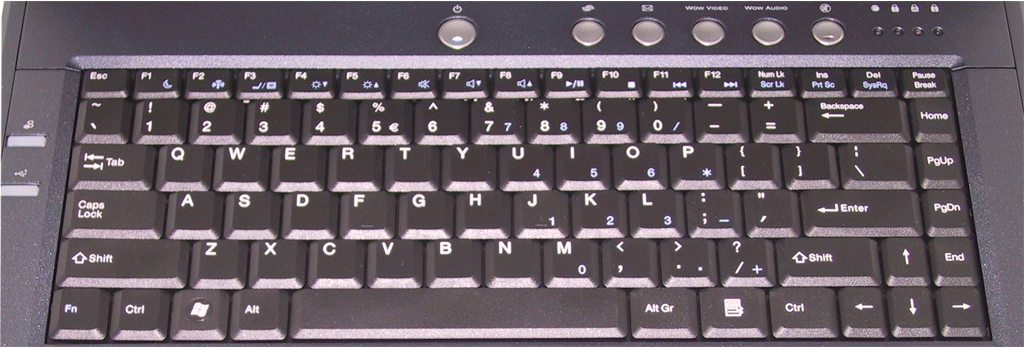

Keyboard
|
 | Processor Type :
Intel Core 2 Duo processor (65nm) w/ 4MB or 2MB L2 Cache and
800MHz FSB |
|
| Processor
Speeds Supported :
Core 2 Duo
T7700 (2.4GHz),
T7500 (2.20GHz),
T7300
(2.00GHz), T7100 (1.8GHz) |
|
| Chipset
: Intel PM965 / ICH8-M "Crestline" |
|
| Memory :
2 memory slots expandable to 4 GB
using SO-DIMM (200-pin/1.8V) devices. Supports
DDR2-667
SDRAM modules in sizes
of: 1GB, & 2GB. Dual Channel
supported. |
|
| Graphics :
Integrated
PCI Express NVIDIA GeForce
8600M GT graphics
processor clocked at 475MHz with
512MB
dedicated video RAM at 700MHz clock. Supports up to
1GB
via NVIDIA's Turbo Cache
technology which dynamically utilizes shared main memory
when needed to
increase the
performance of system bus data transfers.
You will need 1GB
or more of system RAM to get 512MB of video RAM, or 2GB
or more of system RAM to get 1GB of video RAM.
Supports dual display option and integrated TV out functions
via S-Video out port.
Microsoft DirectX 10, Shader
Model 4.0 & OpenGL 2.1 support. NVIDIA®
PureVideo™ technology for HD video and High Dynamic-Range
Lighting (HDR).
|
|
External VGA:
Analog VGA out is limited to 2048x1536 max resolution @ 85Hz
according to
NVIDIA specifications. |
|
| Display
: FL92 - 15.4" WXGA (1280x800) Widescreen
(Glossy Type) Enhanced Screen Active Matrix TFT |
|
| Hard Drive :
2.5" (9.5mm) SATA HDD with
support for 120, 160 GB
capacities. (7200/5400 RPM support) |
|
| Optical Multimedia :
DVDRW
Multi (8x DVD+/-RW) |
|
| Networking :
Integrated 10/100/1000 Mbps PCI Express x1 Gigabit Ethernet |
|
| Modem :
Integrated Motorola SM56 56K bps V.92/90 MDC Fax / Modem |
|
| ExpressCard Slot: One
PCI Express x1 slot supporting ExpressCard 34/54 mm devices |
|
| Mouse :
ElanTech 810511-0911 Touchpad with 2 click buttons; support
for scroll up/down |
|
| Keyboard & Hot
Keys:
Desktop-like full-size 86 keys, 3mm
Travel; 5 Launch Buttons => Internet, E-mail, WoW Video, WoW
Audio and Mute buttons located to the right of power-on
button on power panel; Smart Charging & Power USB buttons to
the left of the KB |
|
| Sound :
Built-in
2-channel Intel HD Audio
Controller (Realtek ALC268), with 3D effect & full duplex.
Built-in 1.5W stereo speakers (front), and stereo microphone
on LCD bezel (B-Face) |
|
| Card Reader :
3-in-1
built-in card reader (Ricoh R5C833 PCI controller): SD/MMC/MS/MS
PRO |
|
| |
| I/O Ports :
|
|
1 x S-Video
composite TV Out |
1 x VGA port/Mini D-sub 15 pins |
|
4 x USB 2.0 Ports |
1 x Headphone-out
jack |
1 x Microphone-in jack |
|
Kensington Lock hole |
1 x
ExpressCard 34 / 54 |
1 x IEEE 1394 (VIA) - B Type Jack |
|
1 x RJ-45 LAN |
1 x RJ-11 Modem |
- |
| Wireless :
Intel PRO/WIRELESS 4965AGN
(802.11agn) Wi-Fi Mini-PCI express module |
|
| Camera :
(Optional) Integrated
2.0 Megapixel Camera (Chicony CNF6212) |
|
| Fingerprint Reader :
Integrated
UPEK TCS4BA fingerprint biometric reader located to the
right-side of KB rest.
UPEK
Protector Suite QL 5.6
software.
|
| TPM :
Integrated Infineon Trusted Platform Module
for added security. |
|
| Intel Turbo Memory (Optional)
: 1GB Intel Turbo Memory "Robson" Module
|
|
| Other
Optional Items
: extra regular battery,
extra AC adapter,
Bluetooth v2.0 module Foxconn T60H928.06, extra 9 Cell 80
Whrs Battery |
|
| Recommended Operating
Systems :
Microsoft Windows Vista 32-bit Basic / Premium / Business /
Ultimate |
|
| Included Software :
Nero 7 Essentials Suite: |
|
| Battery :
Lithium-Ion battery w/9 cells, 11.1V, 7200mAh
|
|
| AC Adapter :
Output=> 19V DC, 4.74A, 90W
Input => 100~240V AC, 1.5A, 50/60Hz
universal |
|
| Dimensions :
13.98" x 10.11 x 1.39"~1.48" (WxDxH) |
|
| Weight :
~6.2 lbs. fully configured |
|
