FT01 (14.1"
WXGA)
Standard Pricing for 14" Notebook
|
Other Views:

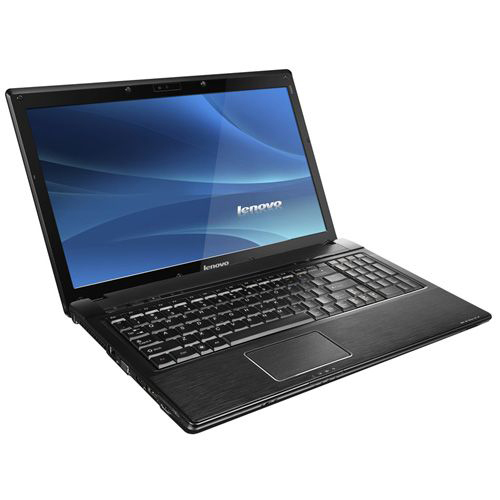

Front,

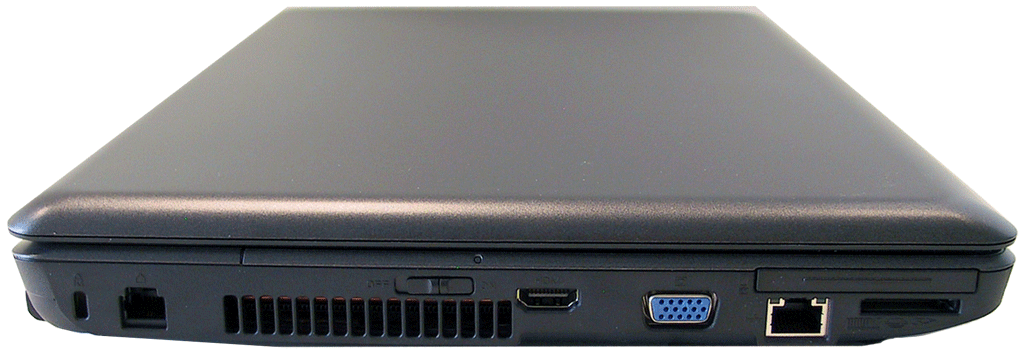

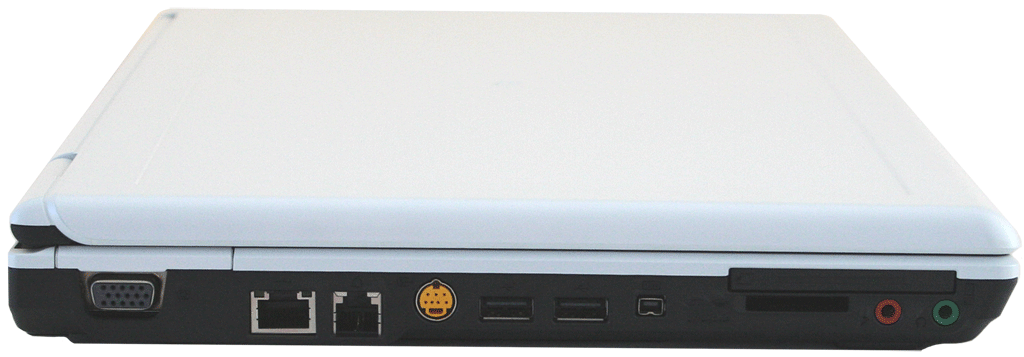

Left,

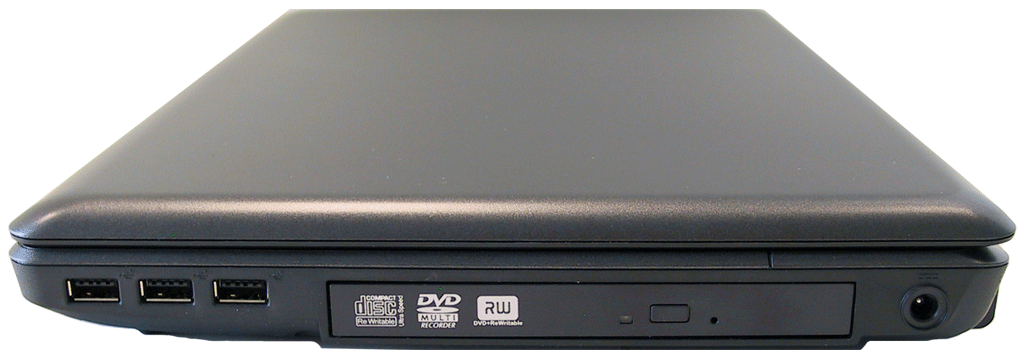

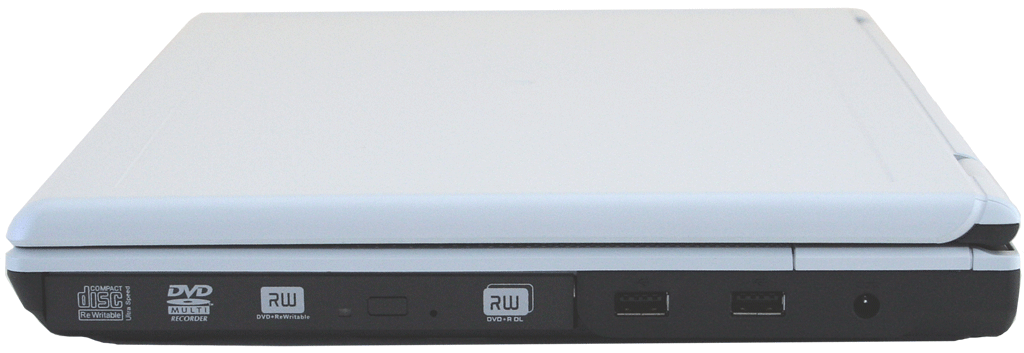

Right,

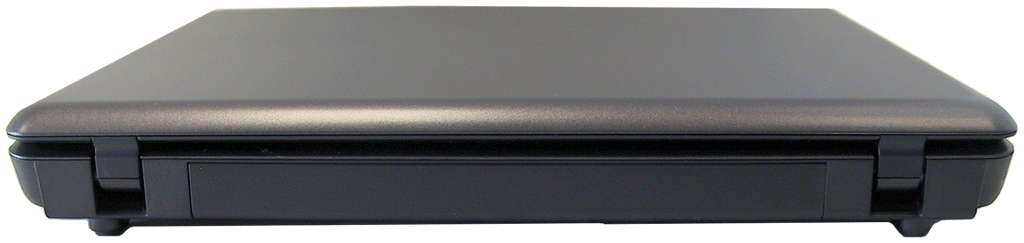

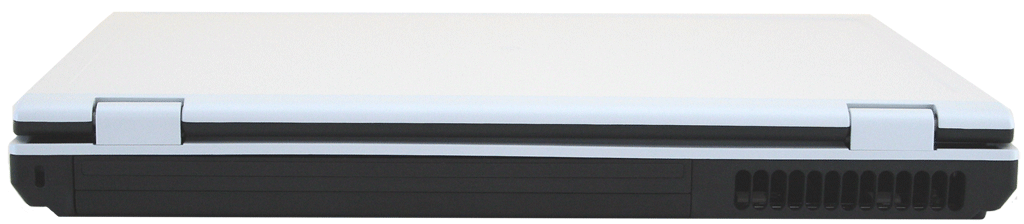

Back,

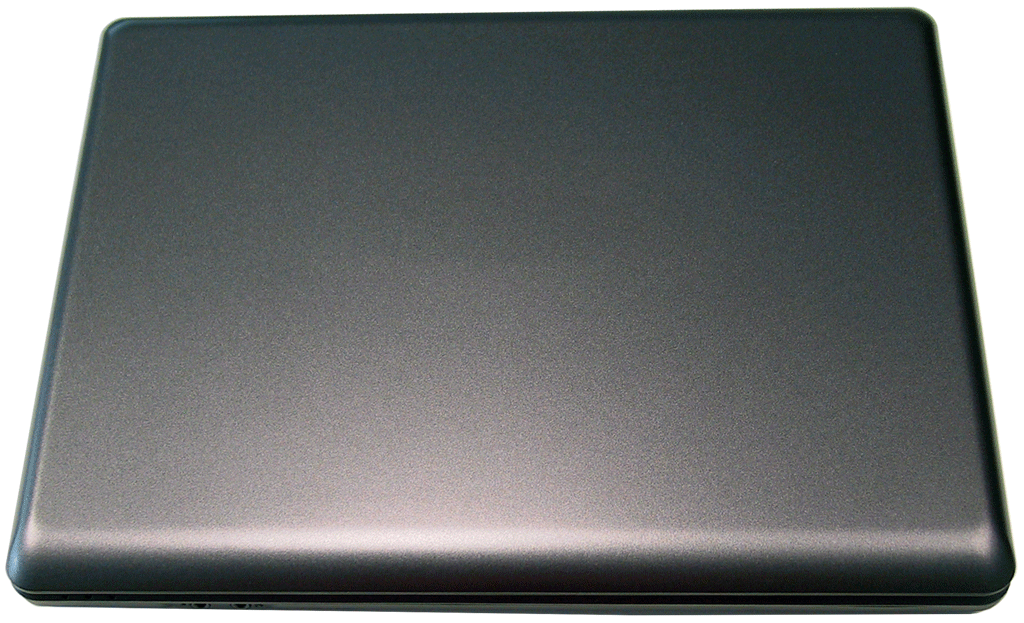

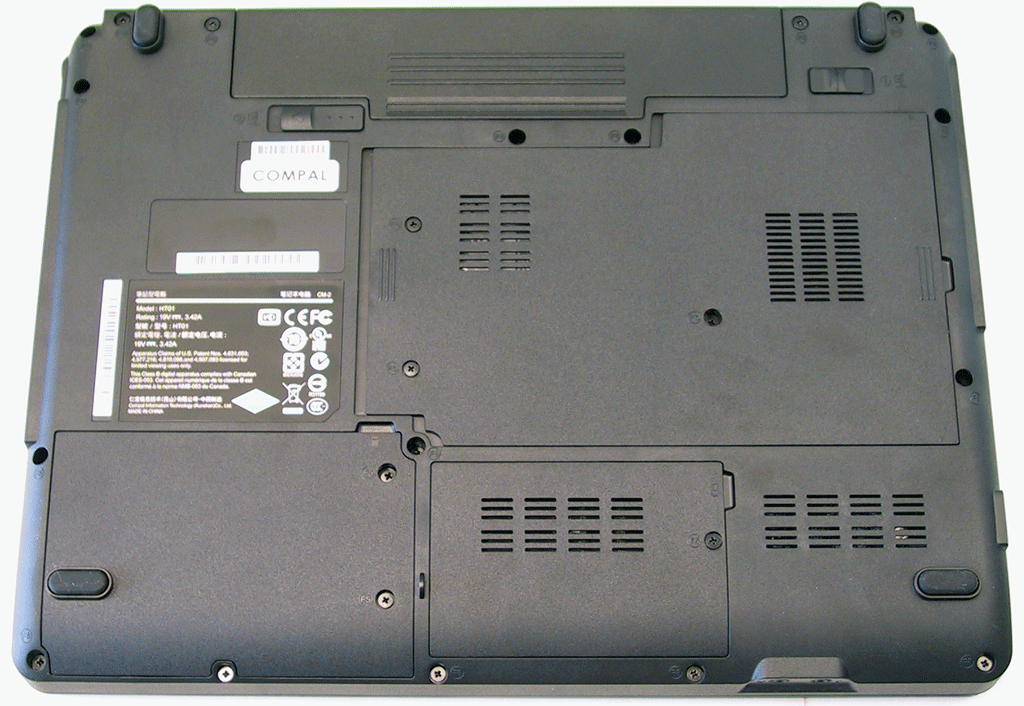

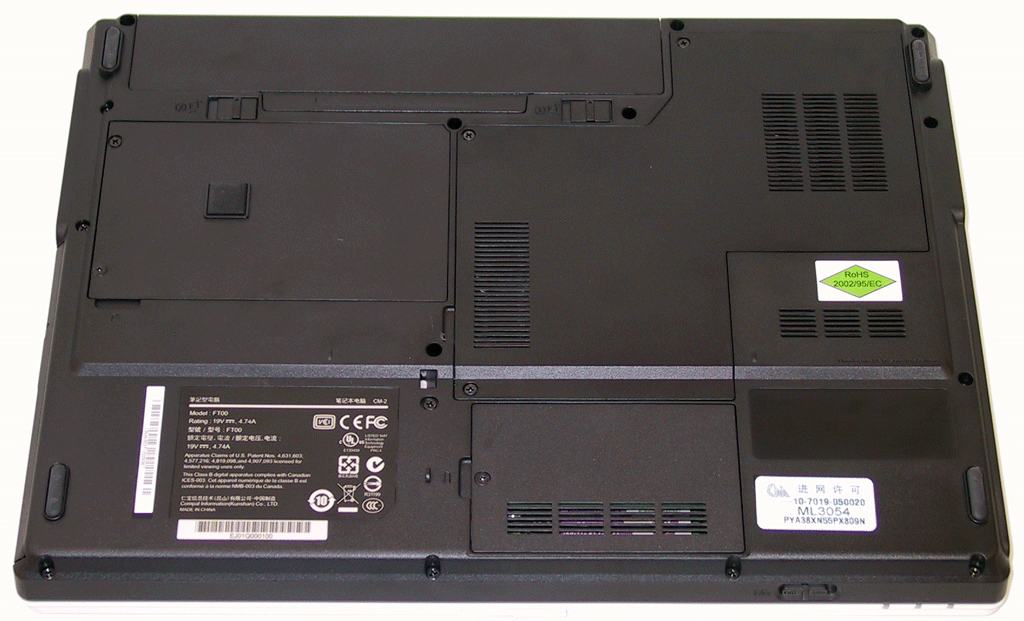

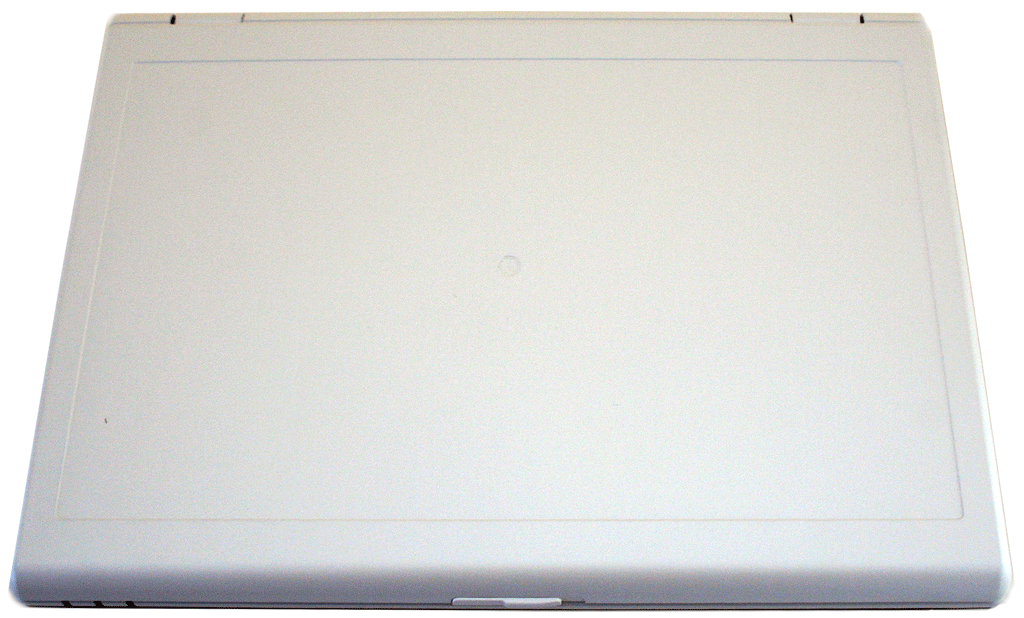

Top, Bottom,

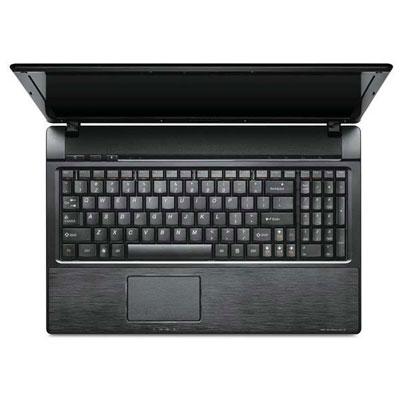

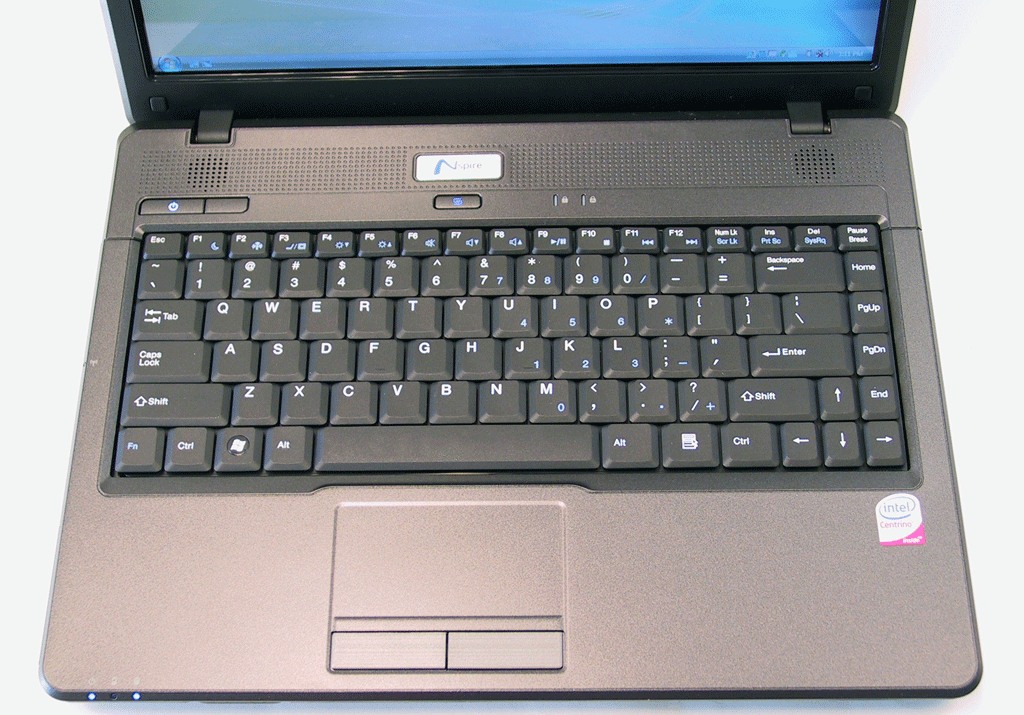

Keyboard
|
 | Processor Type :
Intel Core 2 Duo processor (65nm) w/ 4MB or 2MB L2 Cache and
800MHz FSB (Socket P Only) |
|
| Processor
Speeds Supported :
Core 2 Duo
T7700 (2.4GHz),
T7500
(2.20GHz),
T7300 (2.00GHz),
T7100 (1.8GHz) |
|
| Chipset
: Intel GM965 / ICH8-M "Crestline" |
|
| Memory :
2 memory slots expandable to 4 GB
using SO-DIMM (200-pin/1.8V) devices. Supports
DDR2-667 SDRAM modules in sizes
of: 1GB, & 2GB Dual Channel
supported. |
|
| Graphics :
Embedded
Intel® Graphics Media Accelerator
GMA X3100
graphics processor with 500MHz clock and supports up to
384MB
of shared video RAM.
Supports dual display option and integrated
TV out functions via S-Video out port. Intel®
Clear Video technology, DX 10, OpenGL 1.5, Shader Model 3.0
support. |
|
| Display
: 14.1" WXGA (1280x800)
Widescreen (Glossy/Glare Type) Enhanced Screen Active Matrix
TFT |
|
| Hard Drive :
2.5" (9.5mm) SATA HDD with
support for 60, 80, 100, 120, 160 GB
capacities. (7200/5400 RPM support) |
|
| Optical Multimedia :
DVDRW
Multi (8x DVD+/-RW) |
|
| Networking :
Integrated 10/100 Mbps Ethernet (Broadcom 5906M) |
|
| Modem :
Integrated Motorola SM56 56K bps V.92/90 MDC Fax / Modem |
|
| ExpressCard Slot: One
PCI Express x1 slot supporting ExpressCard 34/54 mm devices |
|
| Mouse :
ElanTech 810511-0911 Touchpad with 2 click buttons; support
for scroll up/down |
|
| Keyboard & Hot
Keys : Desktop-like
full-size 86 keys, 3mm Travel; 5 Launch Buttons => Internet,
E-mail, Smart Charging, Power USB and Mute buttons located
to the right of power-on button on power panel. |
|
| Sound :
Built-in
2-channel Intel HD Audio
Controller (Realtek ALC268), with 3D effect & full duplex.
Built-in 1.5W stereo speakers (front), and mono microphone
on LCD bezel (B-Face) |
|
| Card Reader :
3-in-1
built-in card reader (Ricoh R5C833 PCI controller):
SD/MMC/MS/MS PRO |
|
| |
| I/O Ports :
|
|
1 x RJ-45 LAN |
1 x RJ-11 Modem |
|
4 x USB 2.0 Ports |
1 x S-Video composite TV Out |
1 x VGA port/Mini D-sub 15 pins |
|
Kensington Lock hole |
1 x Headphone-out
jack |
1 x Microphone-in jack |
|
|
1 x
ExpressCard 34 / 54 |
1 x IEEE 1394 (Ricoh RL53C82) - B
Type Jack |
| Wireless :
Option for Intel PRO/WIRELESS 4965AGN
(802.11agn) Wi-Fi Mini-PCI express module |
|
| |
| Other
Optional Items
: extra
regular battery, extra AC adapter,
Bluetooth v2.0 module Foxconn T60H928.06,
Extra 9 Cell 80Whrs Battery |
|
| Recommended Operating
Systems :
Microsoft Windows Vista 32-bit Premium / Business /
Ultimate |
|
| Included Software :
Nero 7 Essentials Suite |
|
| Battery :
Lithium-Ion battery w/6 cells, and 53W/Hrs capacity, 11.1V,
4800mAh |
|
| AC Adapter :
Output=> 19V DC, 3.95A, 75W
Input => 100~240V AC, 1.5A, 50/60Hz
universal |
|
| Top Cover :
support for a Customizable Notebook Panel (CNP) - recommend
Skinit.com |
|
| Dimensions :
13.26" x 9.65 x 1.35"~1.45" (WxDxH) |
|
| Weight :
~5.2 lbs. fully configured |
|
